5. Chirality

Fischer Projection

Organic Chemistry

5. Chirality

Fischer Projection

Previous problemNext problem

3:23 minutes

Problem 59

Textbook Question

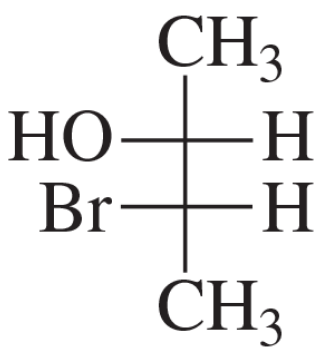

Convert the Fischer projection to a perspective formula.

Verified step by step guidance

Step 1: Understand the Fischer projection. A Fischer projection is a 2D representation of a molecule where horizontal lines represent bonds coming out of the plane (towards the viewer) and vertical lines represent bonds going behind the plane (away from the viewer).

Step 2: Identify the groups attached to the central carbon atom in the Fischer projection. In this case, the groups are CH3 (top), CH3 (bottom), HO (left), and Br (right). The two hydrogens are also present on the vertical axis.

Step 3: Convert the horizontal bonds (HO and Br) into wedges in the perspective formula. These groups are coming out of the plane towards the viewer, so they should be represented as solid wedges in the perspective formula.

Step 4: Convert the vertical bonds (CH3 groups) into dashed lines in the perspective formula. These groups are going behind the plane away from the viewer, so they should be represented as dashed lines in the perspective formula.

Step 5: Arrange the groups in the perspective formula to maintain the stereochemistry of the molecule. Ensure that the spatial arrangement of the groups matches the original Fischer projection, preserving the correct configuration of the molecule.

Verified video answer for a similar problem:

This video solution was recommended by our tutors as helpful for the problem above

Video duration:

Play a video:

Was this helpful?

Key Concepts

Here are the essential concepts you must grasp in order to answer the question correctly.

Fischer Projection

A Fischer projection is a two-dimensional representation of a molecule, typically used for carbohydrates and amino acids, where the vertical lines represent bonds going back into the plane and the horizontal lines represent bonds coming out of the plane. This format helps visualize the stereochemistry of chiral centers, allowing for easy identification of the configuration (D or L) of sugars and amino acids.

Perspective Formula

A perspective formula, often depicted in three dimensions, illustrates the spatial arrangement of atoms in a molecule. This representation emphasizes the three-dimensional orientation of bonds and groups, making it easier to understand molecular geometry and interactions. It is particularly useful for visualizing how molecules might interact in chemical reactions.

Stereochemistry

Stereochemistry is the study of the spatial arrangement of atoms in molecules and how this arrangement affects their chemical properties and reactions. It is crucial for understanding isomerism, where compounds with the same molecular formula can have different structures and properties due to the orientation of their atoms. Mastery of stereochemistry is essential for converting between different molecular representations, such as Fischer projections and perspective formulas.
