Problem 79

Textbook Question

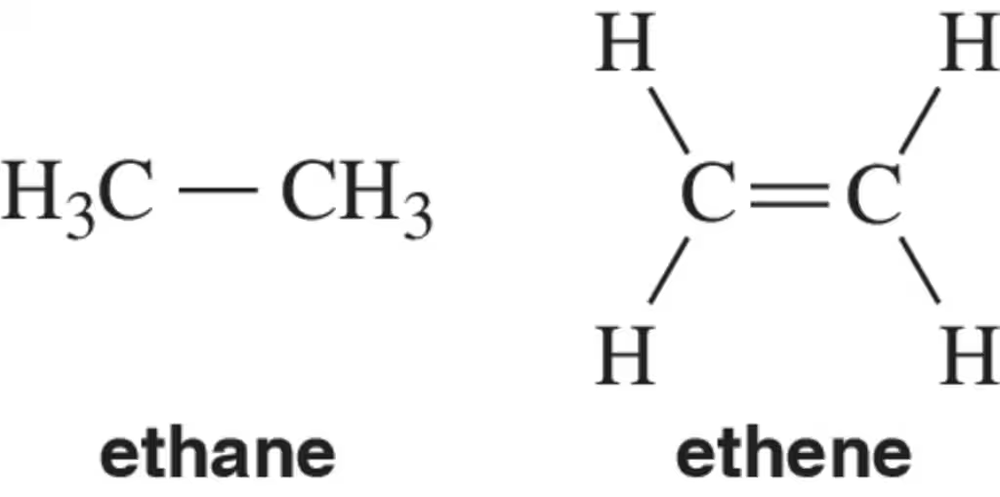

There is free rotation around the C―C bond in ethane. There is an extremely high barrier to rotation around the C=C bond in in ethene. Explain.

Verified step by step guidance

In ethane (C₂H₆), the carbon-carbon bond is a single bond (sigma bond, denoted as σ). A sigma bond is formed by the head-on overlap of atomic orbitals, and it allows for free rotation around the bond axis because the electron density is symmetrically distributed along the bond axis.

In ethene (C₂H₄), the carbon-carbon bond is a double bond, consisting of one sigma bond (σ) and one pi bond (π). The sigma bond is formed by the head-on overlap of orbitals, while the pi bond is formed by the side-by-side overlap of p orbitals above and below the plane of the atoms.

The pi bond in ethene restricts rotation because the side-by-side overlap of the p orbitals would be disrupted if the carbon atoms were to rotate relative to each other. This disruption would break the pi bond, which requires significant energy to overcome.

The energy barrier to rotation around the C=C bond in ethene is extremely high due to the strength of the pi bond. In contrast, the single sigma bond in ethane does not have this restriction, allowing for free rotation.

In summary, the free rotation in ethane is due to the single sigma bond, while the restricted rotation in ethene is due to the presence of the pi bond in the double bond, which prevents rotation without breaking the bond.

Verified video answer for a similar problem:

This video solution was recommended by our tutors as helpful for the problem above

Video duration:

Play a video:

Was this helpful?

Key Concepts

Here are the essential concepts you must grasp in order to answer the question correctly.

C―C Bond Rotation

In ethane, the C―C bond is a single bond, allowing for free rotation around the bond axis. This rotation occurs because single bonds have sigma (σ) bonds formed by the head-on overlap of orbitals, which do not have any significant energy barriers to rotation. As a result, the spatial arrangement of the atoms can change freely without breaking the bond.

C=C Bond Characteristics

In contrast, the C=C bond in ethene is a double bond, consisting of one sigma (σ) bond and one pi (π) bond. The pi bond is formed by the side-to-side overlap of p orbitals, which restricts rotation because breaking the pi bond requires significant energy. This results in a high barrier to rotation around the C=C bond, leading to fixed geometries in the molecule.

Energy Barriers in Bond Rotation

The energy barrier to rotation around a bond is influenced by the type of bond and the presence of substituents. In ethene, the pi bond creates a substantial energy barrier that must be overcome to rotate the molecule, while in ethane, the absence of such a barrier allows for unrestricted rotation. Understanding these energy dynamics is crucial for predicting molecular behavior and reactivity.
