19. Reactions of Aromatics: EAS and Beyond

EAS:Synergistic and Competitive Groups

Organic Chemistry

19. Reactions of Aromatics: EAS and Beyond

EAS:Synergistic and Competitive Groups

Previous problemNext problem

4:24 minutes

Problem 58a,b

Textbook Question

For each of the following compounds, indicate the ring carbon(s) that is/are nitrated when the compound is treated with HNO₃/H₂SO₄:
a.
b.

Verified step by step guidance

Step 1: Analyze the substituents on the benzene ring for each compound. Substituents influence the reactivity and regioselectivity of electrophilic aromatic substitution reactions, such as nitration. Electron-withdrawing groups (e.g., NO2, COOH) are deactivating and direct incoming groups to meta positions, while electron-donating groups (e.g., alkoxy groups) are activating and direct to ortho/para positions.

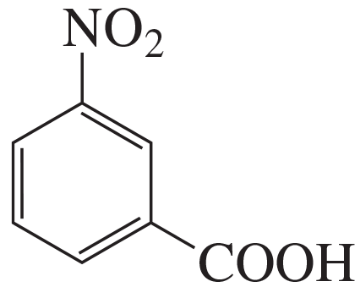

Step 2: For compound (a), the benzene ring has two substituents: a nitro group (-NO2) and a carboxylic acid group (-COOH). Both are electron-withdrawing and deactivating, directing incoming electrophiles to the meta positions relative to themselves. Identify the meta positions relative to each substituent and determine overlap.

Step 3: For compound (b), the benzene ring has two ester groups (-COOCH3). Ester groups are electron-withdrawing through resonance and inductive effects, but they are less deactivating compared to nitro groups. They direct incoming electrophiles to the meta positions relative to themselves. Identify the meta positions relative to each ester group and determine overlap.

Step 4: Consider steric hindrance in both compounds. In compound (a), the nitro and carboxylic acid groups may create steric hindrance at certain positions, potentially affecting the likelihood of nitration at those sites. Similarly, in compound (b), the ester groups may influence steric accessibility of the meta positions.

Step 5: Summarize the positions on the benzene ring for each compound that are most likely to undergo nitration based on the electronic and steric effects of the substituents. These positions are determined by the directing effects of the substituents and the overlap of meta positions.

Verified video answer for a similar problem:

This video solution was recommended by our tutors as helpful for the problem above

Video duration:

Play a video:

Was this helpful?

Key Concepts

Here are the essential concepts you must grasp in order to answer the question correctly.

Electrophilic Aromatic Substitution

Electrophilic aromatic substitution (EAS) is a fundamental reaction in organic chemistry where an electrophile replaces a hydrogen atom on an aromatic ring. This process is crucial for understanding how substituents influence the reactivity of aromatic compounds. In the context of nitration, the electrophile is the nitronium ion (NO2+), generated from nitric acid and sulfuric acid, which attacks the electron-rich aromatic ring.

Directing Effects of Substituents

Substituents on an aromatic ring can either be electron-donating or electron-withdrawing, affecting the position where new substituents are added during EAS. Electron-donating groups (like -OH or -OCH3) direct incoming electrophiles to the ortho and para positions, while electron-withdrawing groups (like -NO2 or -CF3) direct them to the meta position. Understanding these directing effects is essential for predicting the outcome of nitration reactions.

Nitration Mechanism

The nitration mechanism involves the generation of the nitronium ion, which acts as the electrophile in the reaction. The mechanism proceeds through the formation of a sigma complex (arenium ion) after the electrophile attacks the aromatic ring, followed by deprotonation to restore aromaticity. Recognizing this mechanism helps in identifying which carbon atoms in the ring will be nitrated based on the existing substituents.
