Shifting Lineweaver-Burk Plots: Videos & Practice Problems

The Lineweaver-Burk plot is a graphical representation used in enzyme kinetics to illustrate the relationship between the reciprocal of the reaction velocity (V) and the reciprocal of the substrate concentration (S). The equation for this plot can be derived from the linear equation of a line, y = mx + b, where m represents the slope and b the y-intercept. In the context of enzyme kinetics, the Lineweaver-Burk equation can be expressed as:

$$\frac{1}{V} = \frac{K_m}{V_{max}} \cdot \frac{1}{[S]} + \frac{1}{V_{max}}$$

Here, K_m is the Michaelis constant, and V_max is the maximum reaction velocity. The slope of the line, m, is defined as the ratio of K_m to V_max, while the y-intercept, b, is the reciprocal of V_max.

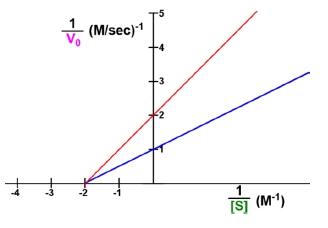

Understanding how to shift the line on a Lineweaver-Burk plot involves manipulating these two parameters: the slope and the y-intercept. A slope of zero indicates a horizontal line, which is not possible in enzyme kinetics since the slope, defined as K_m/V_max, must always be positive. As the slope increases, the line becomes steeper, indicating a higher ratio of K_m to V_max.

For example, if the slope increases from 1 to 2 or 3, the steepness of the line will correspondingly increase. The y-intercept, on the other hand, represents the point where the line crosses the y-axis, which is influenced by the value of V_max. An increase in the y-intercept elevates the line's position on the y-axis, indicating a lower V_max.

It is crucial to note that the slope of a Lineweaver-Burk plot cannot be zero or negative, ensuring that all lines will have a positive slope. This characteristic simplifies the interpretation of the plot, as it eliminates the possibility of horizontal or downward-sloping lines. In summary, the Lineweaver-Burk plot serves as a valuable tool in enzyme kinetics, allowing for the visualization and analysis of key parameters such as K_m and V_max through the manipulation of slope and y-intercept.

The Lineweaver-Burk plot, also known as a double reciprocal plot, is a valuable tool in enzyme kinetics that allows for the visualization of the relationship between substrate concentration and reaction velocity. In this plot, the x-axis represents the reciprocal of substrate concentration (1/[S]), while the y-axis represents the reciprocal of the initial reaction velocity (1/v₀). This unique representation can lead to some counterintuitive insights regarding the behavior of key parameters such as the Michaelis constant (K_m) and maximum velocity (v_max).

As we analyze the x-axis, it is important to note that as the reciprocal of substrate concentration approaches zero, the actual substrate concentration increases towards infinity. This means that the x-intercept of the Lineweaver-Burk plot, which is the negative reciprocal of K_m, will always be located to the left of zero. Consequently, K_m itself will increase towards zero, reinforcing the idea that lower K_m values indicate higher affinity between the enzyme and substrate.

Similarly, on the y-axis, the reciprocal of the initial reaction velocity also approaches zero as the actual reaction velocity increases towards v_max. The y-intercept of the plot corresponds to the reciprocal of v_max, indicating that as the y-intercept decreases towards zero, v_max increases towards infinity. This relationship highlights that at infinite substrate concentrations, the reaction velocity approaches its maximum value.

In summary, the Lineweaver-Burk plot serves as a graphical representation that encapsulates the fundamental principles of enzyme kinetics. By understanding that both K_m and v_max increase towards zero as their respective reciprocals approach infinity, students can effectively visualize and interpret the effects of enzyme inhibitors and other factors on enzyme activity. This foundational knowledge will be crucial as we delve deeper into the complexities of enzyme kinetics in future discussions.

In enzyme kinetics, the Lineweaver-Burk plot, also known as the double reciprocal plot, is a valuable tool for analyzing enzyme activity. This plot allows us to determine key parameters such as the Michaelis constant (K_m) and the maximum reaction velocity (V_max) of enzymes. Understanding how to interpret these plots is essential for comparing different enzymes.

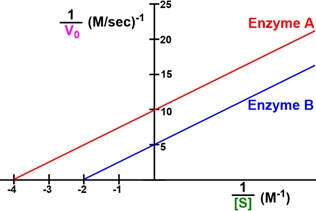

The K_m value is represented by the x-intercept of the Lineweaver-Burk plot. A more negative x-intercept indicates a higher K_m, meaning that the enzyme has a lower affinity for the substrate. Conversely, a less negative x-intercept suggests a lower K_m and a higher affinity for the substrate. In a given plot, if enzyme A has an x-intercept closer to the infinity marker (0 on the x-axis), it indicates that K_m for enzyme A is greater than that of enzyme B, which has an x-intercept further from the infinity marker.

On the other hand, V_max is determined by the y-intercept of the plot. A higher y-intercept corresponds to a lower V_max, while a lower y-intercept indicates a higher V_max. If two enzymes have the same y-intercept, they possess equal V_max values. However, if one enzyme's y-intercept is closer to the infinity marker (0 on the y-axis), it signifies a greater V_max for that enzyme compared to another with a y-intercept further away.

In summary, when analyzing Lineweaver-Burk plots, remember that the x-intercept reveals the K_m values, with closer proximity to the infinity marker indicating a higher K_m. The y-intercept indicates V_max, where a closer y-intercept to the infinity marker signifies a greater V_max. This understanding is crucial for effectively comparing the kinetic properties of different enzymes.
