Monosaccharide Configurations: Videos & Practice Problems

Monosaccharides, the simplest form of carbohydrates, possess chiral centers that can be configured in different ways. Understanding these configurations is crucial in organic chemistry, particularly when studying the structure and function of sugars. There are two primary systems used to designate the configurations of chiral carbons in monosaccharides: the Cahn-Ingold-Prelog system and Fischer's convention.

The Cahn-Ingold-Prelog system utilizes the letters R and S to indicate the configuration of chiral centers. This system is based on the priority of substituents attached to the chiral carbon, where higher atomic number atoms receive higher priority. The configuration is determined by the arrangement of these substituents in three-dimensional space.

On the other hand, Fischer's convention employs the letters D and L to denote the configuration of monosaccharides. This system is particularly useful for classifying sugars based on the orientation of the hydroxyl group (-OH) on the penultimate carbon (the second to last carbon in the chain). If the hydroxyl group is on the right in a Fischer projection, the sugar is designated as D; if it is on the left, it is designated as L.

As you delve deeper into the study of monosaccharides, you will explore each of these systems in detail, starting with the Cahn-Ingold-Prelog system. Understanding these configurations is essential for grasping the biochemical roles of carbohydrates in living organisms.

The Cahn-Ingold-Prelog (CIP) system is essential for designating the absolute configurations of chiral carbons, using the designations R and S. A chiral carbon is defined as a carbon atom bonded to four distinct chemical groups, which allows for the determination of its configuration. For example, in glyceraldehyde, the central carbon is chiral, while the other carbons are not due to their bonding patterns.

To assign R or S configurations, follow these three steps:

First, assign priorities (1 through 4) to the groups attached to the chiral carbon based on the atomic numbers of the atoms in each group. The group with the highest atomic number receives the highest priority. For instance, in glyceraldehyde, the hydroxyl group (with oxygen) is priority 1, followed by a group with a double bond to oxygen (priority 2), a carbon group (priority 3), and finally, a hydrogen atom (priority 4).

Second, determine the arrangement of priorities 1, 2, and 3 while ignoring the group with priority 4. If the sequence is clockwise, the configuration is R; if counterclockwise, it is S. In the case of glyceraldehyde, the arrangement is counterclockwise, suggesting an S configuration.

The final step involves checking the position of the group with priority 4. If it is represented as a wedge (indicating it is coming out of the plane of the page), the configuration must be reversed. In this example, since priority 4 is on a horizontal bond in the Fischer projection (which indicates it is indeed a wedge), the configuration is actually R, despite the initial counterclockwise appearance.

Thus, the chiral carbon in glyceraldehyde is assigned an R configuration. Mastery of these steps is crucial, as they are often expected in academic settings. Practice problems can further solidify understanding of this important concept in stereochemistry.

Understanding the designation of D and L configurations in carbohydrates is essential, particularly through Fischer's convention, which is primarily applied to sugars. This method utilizes glyceraldehyde, one of the simplest sugars, as a reference point for determining the configuration of chiral carbons. Enantiomers, which are non-superimposable mirror images, play a crucial role in this process.

In Fischer projections, the D configuration is assigned when the hydroxyl group (-OH) on the chiral carbon is oriented to the right, while the L configuration is designated when the hydroxyl group points to the left. This can be remembered by associating "L" with "left." For example, in the glyceraldehyde enantiomers, the one with the hydroxyl group on the right is labeled as D-glyceraldehyde, whereas the one with the hydroxyl group on the left is L-glyceraldehyde.

It is important to note that Fischer's convention is applicable only to standard Fischer projections, which require the carbonyl group to be positioned at the top and the longest carbon chain to be vertical. In most biochemistry contexts, D configurations typically correspond to R configurations, and L configurations correspond to S configurations, although this is not universally true. Therefore, it is advisable to determine the R/S configuration separately from the D/L configuration for accuracy.

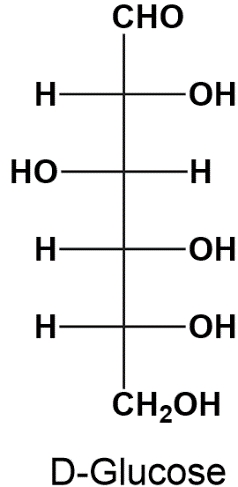

When analyzing glucose enantiomers, the configuration of each chiral carbon can be determined by the orientation of its hydroxyl group. For instance, if a hydroxyl group points to the right, it is assigned a D configuration, while a left-pointing hydroxyl group receives an L designation. The overall configuration of a monosaccharide is determined by the highest numbered chiral carbon, or the one furthest from the carbonyl group. For example, if the furthest chiral carbon has a D configuration, the entire monosaccharide is classified as D-glucose; conversely, if it has an L configuration, it is L-glucose.

Interestingly, while biological amino acids predominantly exist in the L configuration, biological carbohydrates are generally found in the D configuration. The reasons behind these preferences in biological systems remain a topic of exploration, but it is a fundamental concept to grasp as you progress in your studies.
