15. Rotational Equilibrium

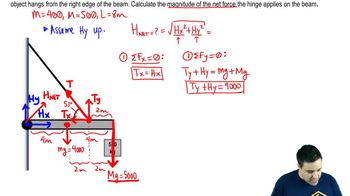

A beam 200 kg in mass and 6 m in length is held horizontally against a wall by a hinge on the wall and a light rod underneath it, as shown. The rod makes an angle of 30° with the wall and connects with the beam 1 m from its right edge. Calculate the angle that the Net Force of the hinge makes with the horizontal (use +/– for above/below +x axis, and use g=10 m/s².)

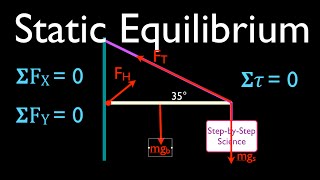

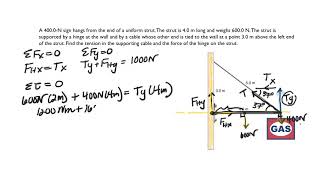

A beam 200 kg in mass and 4 m in length is held against a vertical wall by a hinge on the wall and a light horizontal cable, as shown. The beam makes 53° with the wall. At the end of the beam, a second light cable holds a 100 kg object. Calculate the angle that the Net Force of the hinge makes with the horizontal (use +/– for above/below +x axis, and use g=10 m/s².)

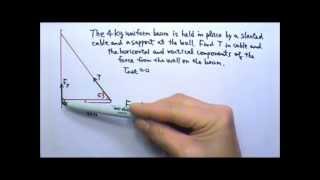

A 9.00-m-long uniform beam is hinged to a vertical wall and held horizontally by a 5.00-m-long cable attached to the wall 4.00 m above the hinge (Fig. E11.17). The metal of this cable has a test strength of 1.00 kN, which means that it will break if the tension in it exceeds that amount.

(b) What is the heaviest beam that the cable can support in this configuration?
