11. Momentum & Impulse

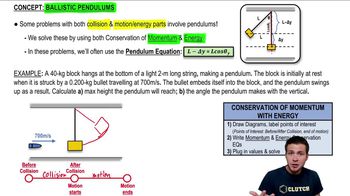

Ballistic Pendulum
11. Momentum & Impulse
Ballistic Pendulum
07:43
Additional 2 creators.
Learn with other creators
Showing 5 of 5 videos
Practice this topic
- Open Question
(I) In a ballistic pendulum experiment, projectile 1 results in a maximum height h of the pendulum equal to 2.6 cm. A second projectile (of the same mass) causes the pendulum to swing twice as high, h₂ = 5.2 cm . The second projectile was how many times faster than the first?
- Open Question
(II) A 28-g rifle bullet traveling 190 m/s embeds itself in a 3.1-kg pendulum hanging on a 2.4-m-long string, which makes the pendulum swing upward in an arc. Determine the vertical and horizontal components of the pendulum’s maximum displacement.
- Open QuestionA 20 kg wood ball hangs from a 2.0-m-long wire. The maximum tension the wire can withstand without breaking is 400 N. A 1.0 kg projectile traveling horizontally hits and embeds itself in the wood ball. What is the greatest speed this projectile can have without causing the wire to break?
