A concave mirror has a radius of curvature of 34.0 cm. If the mirror is immersed in water (refractive index 1.33), what is its focal length?

An object 0.600 cm tall is placed 16.5 cm to the left of the vertex of a concave spherical mirror having a radius of curvature of 22.0 cm. Determine the position, size, orientation, and nature (real or virtual) of the image.

An object is 18.0 cm from the center of a spherical silvered-glass Christmas tree ornament 6.00 cm in diameter. What are the position and magnification of its ?

You hold a spherical salad bowl 60 cm in front of your face with the bottom of the bowl facing you. The bowl is made of polished metal with a 35-cm radius of curvature. Where is the of your 5.0-cm tall nose located?

A spherical, concave shaving mirror has a radius of curvature of 32.0 cm. Where is the image? Is the image real or virtual?

Dental Mirror. A dentist uses a curved mirror to view teeth on the upper side of the mouth. Suppose she wants an erect with a magnification of 2.00 when the mirror is 1.25 cm from a tooth. (Treat this problem as though the object and lie along a straight line.) What must be the focal length and radius of curvature of this mirror?

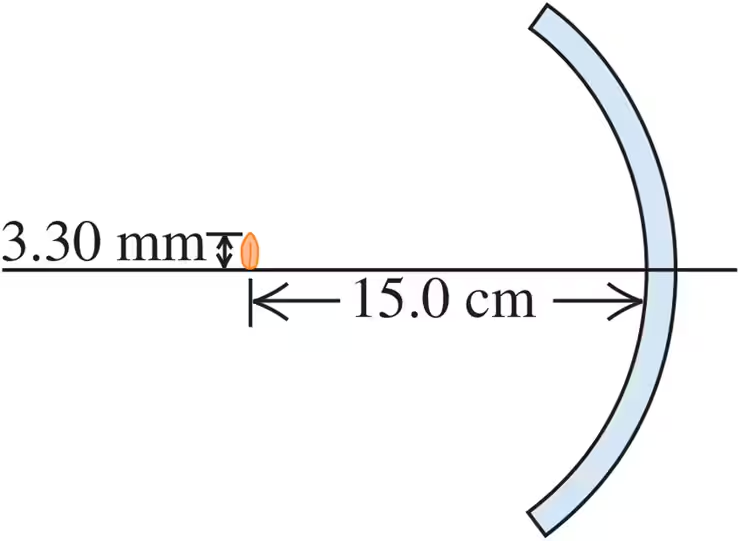

The thin glass shell shown in Fig. E34.15 has a spherical shape with a radius of curvature of 12.0 cm, and both of its surfaces can act as mirrors. A seed 3.30 mm high is placed 15.0 cm from the center of the mirror along the optic axis, as shown in the figure. Calculate the location and height of the of this seed.

A person is lying on a diving board 3.00 m above the surface of the water in a swimming pool. She looks at a penny that is on the bottom of the pool directly below her. To her, the penny appears to be a distance of 7.00 m from her. What is the depth of the water at this point?

A Spherical Fish Bowl. A small tropical fish is at the center of a water-filled, spherical fish bowl 28.0 cm in diameter. Find the apparent position and magnification of the fish to an observer outside the bowl. The effect of the thin walls of the bowl may be ignored.

The glass rod of Exercise 34.22 is immersed in oil (n = 1.45). An object placed to the left of the rod on the rod's axis is to be d 1.20 m inside the rod. How far from the left end of the rod must the object be located to form the image?

The left end of a long glass rod 8.00 cm in diameter, with an index of refraction of 1.60, is ground and polished to a convex hemispherical surface with a radius of 4.00 cm. An object in the form of an arrow 1.50 mm tall, at right angles to the axis of the rod, is located on the axis 24.0 cm to the left of the vertex of the convex surface. Find the position and height of the of the arrow formed by paraxial rays incident on the convex surface. Is the erect or inverted?

A lens forms an of an object. The object is 16.0 cm from the lens. The is 12.0 cm from the lens on the same side as the object. What is the focal length of the lens? Is the lens converging or diverging?

A converging lens with a focal length of 70.0 cm forms an image of a 3.20 cm tall real object that is to the left of the lens. The image is 4.50 cm tall and inverted. Where are the object and image located in relation to the lens? Is the image real or virtual?

A converging lens with a focal length of 9.00 cm forms an image of a 4.00 mm tall real object that is to the left of the lens. The image is 1.30 cm tall and erect. Where are the object and image located? Is the image real or virtual?

A lensmaker wants to make a magnifying glass from glass that has an index of refraction n = 1.55 and a focal length of 20.0 cm. If the two surfaces of the lens are to have equal radii, what should that radius be?

An object is 16.0 cm to the left of a lens. The lens forms an image 36.0 cm to the right of the lens. If the object is 8.00 mm tall, how tall is the image? Is it erect or inverted?

An object is 16.0 cm to the left of a lens. The lens forms an image 36.0 cm to the right of the lens. Draw a principal-ray diagram.

A 1.20 cm tall object is 50.0 cm to the left of a converging lens of focal length 40.0 cm. A second converging lens, this one having a focal length of 60.0 cm, is located 300.0 cm to the right of the first lens along the same optic axis. Find the location and height of the image (call it I1) formed by the lens with a focal length of 40.0 cm.

Repeat Exercise 34.41 using the same lenses except for the following changes: The second lens is a diverging lens having a focal length of magnitude 60.0 cm.

You wish to project the image of a slide on a screen 9.00 m from the lens of a slide projector. If the dimensions of the picture on a 35 mm color slide are 24 mm ✖ 36 mm, what is the minimum size of the projector screen required to accommodate the image?

Zoom Lens. Consider the simple model of the zoom lens shown in Fig. 34.43a. The converging lens has focal length f₁ = 12 cm, and the diverging lens has focal length f₂ = -12 cm. The lenses are separated by 4 cm as shown in Fig. 34.43a. (a) For a distant object, where is the of the converging lens? (c) Where is the final image? Compare your answer to Fig. 34.43a.

Where is the near point of an eye for which a contact lens with a power of +2.75 diopters is prescribed?

Contact lenses are placed right on the eyeball, so the distance from the eye to an object (or image) is the same as the distance from the lens to that object (or image). A certain person can see distant objects well, but his near point is 45.0 cm from his eyes instead of the usual 25.0 cm. Is this person nearsighted or farsighted?

BIO Ordinary Glasses. Ordinary glasses are worn in front of the eye and usually 2.0 cm in front of the eyeball. Suppose that the person in Exercise 34.52 prefers ordinary glasses to contact lenses. What focal length lenses are needed to correct his vision, and what is their power in diopters?

BIO A person can see clearly up close but cannot focus on objects beyond 75.0 cm. She opts for contact lenses to correct her vision. Is she nearsighted or farsighted?

BIO A person can see clearly up close but cannot focus on objects beyond 75.0 cm. She opts for contact lenses to correct her vision. What focal length contact lens is needed, and what is its power in diopters?

A thin lens with a focal length of 6.00 cm is used as a simple magnifier. What angular magnification is obtainable with the lens if the object is at the focal point?

The focal length of a simple magnifier is 8.00 cm. Assume the magnifier is a thin lens placed very close to the eye. If the object is 1.00 mm high, what is the height of its image formed by the magnifier?

A telescope is constructed from two lenses with focal lengths of 95.0 cm and 15.0 cm, the 95.0 cm lens being used as the objective. Both the object being viewed and the final image are at infinity. Find the height of the image formed by the objective of a building 60.0 m tall, 3.00 km away.
