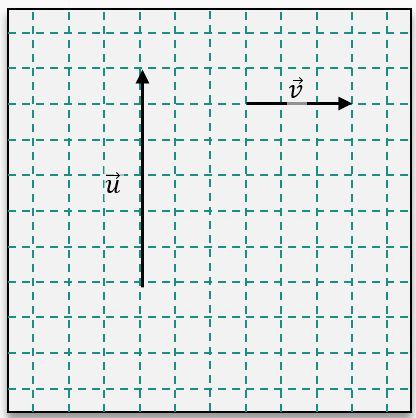

Given vectors u ⃗ u ⃗ u ⃗ and v ⃗ v ⃗ v ⃗ , sketch the resultant vector u ⃗ − v ⃗ u ⃗-v ⃗ u ⃗ − v ⃗ .

In this problem, we are given vectors u and v, and we are asked to sketch the resultant vector u minus v. Now, to solve this, notice we have a subtraction of 2 vectors, and subtracting vectors can also be written as adding negative vectors. So u minus v could also be written as u plus negative v. Now the reason I'm writing it like this is because this actually allows us to deal with the graph we have over here and switch around these vectors. Now I'm going to start by figuring out what negative v is. Well, we see that vector v looks like that and to find negative v, negative v is just going to point in the opposite direction of v, but have the same magnitude. So we can take this and draw it so it's pointing in the opposite direction notice it's the same length, but now it's pointing to the left instead of the right. So now that we have vector negative v, I can use the tip to tail method to add a u and negative v. So we can see we have vector u that's drawn for us, then what I'm going to do is connect the tip of vector u to the tail of vector negative v, And from here, all I need to do is connect these vectors with the resultant vector by taking the initial point of the first vector and connecting it to the terminal point of the last vector, and that will give us the resultant vector u minus v. Now this vector here, this vector can be drawn anywhere on this grid here. So we could draw it there, or we could draw it over here or right there. It doesn't matter where the vector is drawn. All that matters is that it has the correct magnitude and direction that we have right there. So hope you found this video helpful. That's the solution to the problem. Thanks for watching.

Table of contents

Skip topic navigation

0. Fundamental Concepts of Algebra3h 32m
1. Equations and Inequalities3h 27m
2. Graphs1h 43m
3. Functions & Graphs2h 17m
4. Polynomial Functions1h 54m
5. Rational Functions1h 23m
6. Exponential and Logarithmic Functions2h 28m
7. Measuring Angles40m
8. Trigonometric Functions on Right Triangles2h 5m
9. Unit Circle1h 19m
10. Graphing Trigonometric Functions1h 19m
11. Inverse Trigonometric Functions and Basic Trig Equations1h 41m
12. Trigonometric Identities 2h 34m
13. Non-Right Triangles1h 38m
14. Vectors2h 25m
15. Polar Equations2h 5m
16. Parametric Equations1h 6m
17. Graphing Complex Numbers1h 7m
18. Systems of Equations and Matrices3h 6m
19. Conic Sections2h 36m
20. Sequences, Series & Induction1h 15m
21. Combinatorics and Probability1h 45m
22. Limits & Continuity1h 49m
23. Intro to Derivatives & Area Under the Curve2h 9m

14. Vectors

Geometric Vectors

Precalculus

14. Vectors

Geometric Vectors

Previous problemNext problem

Struggling with Precalculus?

Join thousands of students who trust us to help them ace their exams!Watch the first video

Multiple Choice

Given vectors $u ⃗$ and $v ⃗$ , sketch the resultant vector $u ⃗-v ⃗$ .

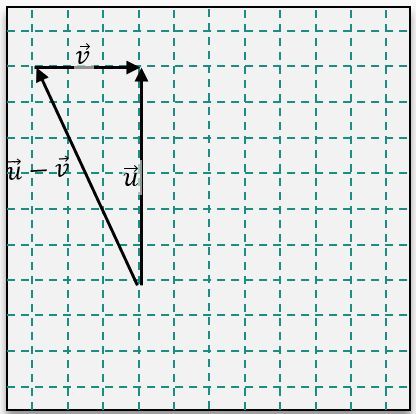

option a

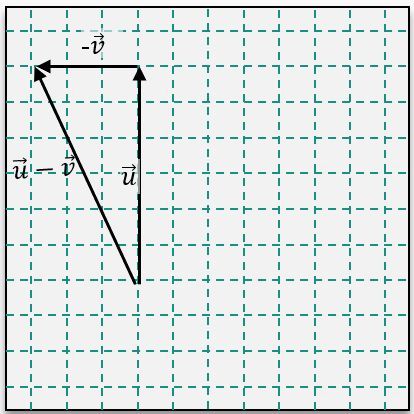

option b

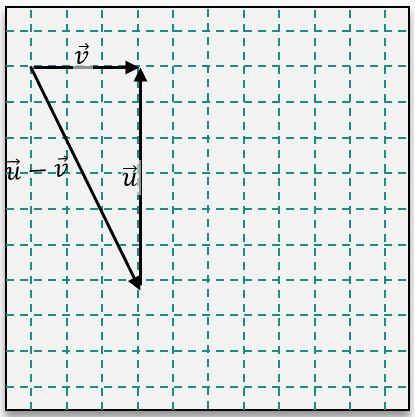

option c

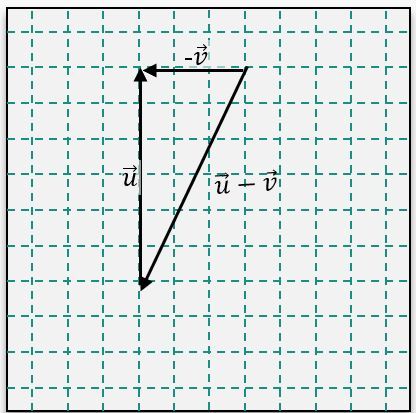

option d

Previous problemNext problem

Verified step by step guidance

Identify the given vectors u⃗ and v⃗ in the image. Vector u⃗ is pointing upwards, and vector v⃗ is pointing to the right.

To find the resultant vector u⃗ - v⃗, you need to reverse the direction of vector v⃗ to get -v⃗. This means vector -v⃗ will point to the left.

Place the tail of vector -v⃗ at the head of vector u⃗. This is because subtracting vectors involves adding the negative of the second vector.

Draw the resultant vector from the tail of u⃗ to the head of -v⃗. This new vector represents u⃗ - v⃗.

Ensure the resultant vector is correctly drawn by checking that it forms a triangle with the original vectors u⃗ and -v⃗, following the vector addition/subtraction rules.
