Transformations: Videos & Practice Problems

Transformations of functions are essential concepts in mathematics that involve manipulating a function to change its position or shape. There are three primary types of transformations: reflections, shifts, and stretches. Understanding these transformations can simplify the study of functions and their graphs.

A reflection occurs when a function is flipped over a specific axis. For example, reflecting a function over the x-axis changes its output to negative, resulting in the transformation represented as f(x) → -f(x). This means that every point on the graph is mirrored across the x-axis.

A shift involves moving a function horizontally or vertically. The general notation for a shift transformation is f(x) → f(x - h) + k, where h indicates the horizontal shift and k represents the vertical shift. For instance, if a function is shifted to the right by 3 units and up by 2 units, it would be expressed as f(x - 3) + 2.

A stretch transformation occurs when a function is vertically stretched or compressed. This is represented as f(x) → c * f(x), where c is a constant. If c is greater than 1, the function is stretched; if c is between 0 and 1, the function is compressed. This transformation alters the steepness of the graph.

To illustrate these transformations, consider the function f(x) = |x|. If we apply a shift transformation to this function, such as p(x) = |x - 3| + 2, we can identify it as a shift to the right by 3 units and up by 2 units. This results in a new graph that is positioned differently from the original.

For a reflection, if we take q(x) = -|x|, this transformation reflects the original function over the x-axis, resulting in a graph that opens downward. If we also include a stretch, such as in r(x) = -2|x|, the graph is both reflected and vertically stretched, making it steeper.

In summary, understanding these three basic transformations—reflections, shifts, and stretches—enables students to analyze and predict the behavior of functions and their graphs effectively. By recognizing how these transformations affect the function notation and the resulting graphs, students can develop a deeper comprehension of function manipulation.

Reflection transformations involve folding a graph over a specific axis, resulting in a new function that mirrors the original. There are two primary types of reflections: over the x-axis and over the y-axis, each affecting the function's coordinates differently.

When reflecting a function over the x-axis, the y-values of the function change signs while the x-values remain unchanged. This can be visualized as creasing the graph at the x-axis and folding it downwards. Mathematically, this transformation can be expressed as:

h(x) = -f(x)

For example, if the original function is f(x) = x + 2, the reflected function becomes:

h(x) = -f(x) = -(x + 2) = -x - 2

Conversely, when reflecting a function over the y-axis, the x-values change signs while the y-values remain the same. This is akin to creasing the graph at the y-axis and folding it sideways. The transformation can be represented as:

h(x) = f(-x)

For instance, if we have the same function f(x) = x + 2, reflecting it over the y-axis results in:

h(x) = f(-x) = -x + 2

Understanding these transformations is crucial for graphing functions accurately and recognizing how changes in the function's equation correspond to visual changes in the graph. By mastering reflection transformations, students can enhance their ability to manipulate and interpret functions effectively.

To understand the transformation of a function through reflection, consider the function \( f(x) \), represented by a curve. When we reflect this function over the x-axis, we create a new function, denoted as \( g(x) \). This reflection can be visualized as folding the graph of \( f(x) \) along the x-axis, similar to how one would fold a sheet of paper.

Mathematically, reflecting a function over the x-axis involves negating its output values. Therefore, the relationship between the original function and the reflected function can be expressed as:

\[ g(x) = -f(x) \]

In this transformation, every point on the graph of \( f(x) \) is mirrored across the x-axis. For instance, if a point on \( f(x) \) is at \( (a, b) \), the corresponding point on \( g(x) \) will be at \( (a, -b) \). This means that if \( f(x) \) has positive values, \( g(x) \) will have the same x-coordinates but negative values, effectively flipping the graph downward.

As a result, the new graph \( g(x) \) will appear as a reflection of \( f(x) \), with all peaks of \( f(x) \) becoming troughs in \( g(x) \) and vice versa. This transformation is crucial in understanding how functions behave under various transformations, enhancing our grasp of function properties and graphing techniques.

Transformations of functions involve moving graphs either vertically or horizontally from their original positions. Understanding shifts is crucial, as they can be represented by specific notations that indicate how a function is altered. The general form for shifts can be expressed as f(x) \rightarrow f(x - h) + k, where h denotes the horizontal shift and k represents the vertical shift.

When considering vertical shifts, the graph moves up or down without changing the x-values. For instance, if a parabola is shifted from a y-value of 0 to 2, the transformation can be described as f(x) + k, where k is the vertical shift. A positive k indicates an upward shift, while a negative k indicates a downward shift.

In contrast, horizontal shifts involve moving the graph left or right, affecting the x-values while keeping the y-values constant. For example, if a graph shifts from 0 to 3, it can be represented as f(x - h), where h is the horizontal shift. A positive h results in a rightward shift, while a negative h results in a leftward shift. This can be counterintuitive, as a negative sign in the equation indicates a rightward movement due to the nature of the transformation.

To illustrate these concepts, consider the transformation f(x - 2) + 3. Here, h is 2, indicating a shift 2 units to the right, and k is 3, indicating a shift 3 units up. Thus, the graph's new position reflects these transformations while maintaining its original shape.

In summary, understanding the effects of h and k in the transformation equation is essential for accurately sketching and interpreting shifts in function graphs. This knowledge allows for a clearer visualization of how functions behave under various transformations.

In the study of function transformations, understanding how to graph shifted and reflected functions is essential. Transformations can include reflections, which involve flipping the graph over an axis, and shifts, which entail moving the graph to a different location on the coordinate plane. When combining these transformations, it is important to recognize how they affect the function's notation and graph.

For instance, when reflecting a function over the x-axis, the function's output becomes negative. If we denote the original function as f(x), the reflected function can be expressed as -f(x). Shifting the graph involves adjusting the function's input and output. A horizontal shift to the left by h units is represented as f(x + h), while a vertical shift by k units is shown as f(x) + k.

To illustrate this, consider the transformation of the absolute value function, f(x) = |x|. If the graph of this function is reflected over the x-axis and then shifted 2 units to the left, we can determine the new function g(x). The reflection gives us -f(x), and the horizontal shift modifies the input to f(x + 2). Therefore, the combined transformation results in:

g(x) = -f(x + 2)

Substituting the original function, we find:

g(x) = -|x + 2|

This process highlights how multiple transformations can be combined into a single function. By carefully applying the rules for reflections and shifts, one can accurately represent the transformed function. Understanding these concepts is crucial for graphing and analyzing functions effectively.

To solve the problem involving the transformation of the function \( f(x) = x^3 \), we need to apply two specific transformations: a reflection over the x-axis and a vertical shift downward by 2 units. Understanding these transformations is crucial for deriving the new function \( h(x) \).

First, reflecting a function over the x-axis changes the function from \( f(x) \) to \( -f(x) \). Therefore, applying this transformation to our original function gives us:

\( f(x) = x^3 \) transforms to \( -f(x) = -x^3 \).

Next, we need to account for the vertical shift. A downward shift of \( k \) units modifies the function to \( f(x) + k \). Since we are shifting down by 2 units, we set \( k = -2 \). Thus, we add this shift to our already transformed function:

\( h(x) = -x^3 - 2 \).

Now, we have the equation for the transformed function:

\( h(x) = -x^3 - 2 \).

To sketch the graph of \( h(x) \), we start with the original function \( f(x) = x^3 \), which has a characteristic shape with a point of inflection at the origin. After reflecting it over the x-axis, the graph will invert, making the left side of the graph rise and the right side fall. This reflection results in a graph that looks like an upside-down cubic function.

Next, we shift this reflected graph down by 2 units. This means every point on the graph of \( -x^3 \) will move down 2 units. The new point of inflection will now be at \( (0, -2) \) instead of at the origin. The overall shape remains the same, but the entire graph is lowered, resulting in a graph that is centered at \( y = -2 \).

In summary, the transformed function \( h(x) = -x^3 - 2 \) reflects the original cubic function over the x-axis and shifts it down by 2 units, resulting in a graph that retains the cubic shape but is positioned lower on the coordinate plane.

Transformations of functions are essential in understanding how graphs behave under various modifications. One key transformation is the stretch or shrink, which involves multiplying the function by a constant. This transformation can be categorized into vertical and horizontal stretches or shrinks, depending on where the constant is applied.

A vertical stretch occurs when a constant greater than 1 is multiplied outside the function, resulting in the graph being pulled away from the x-axis. Conversely, if the constant is between 0 and 1, it leads to a vertical shrink, compressing the graph towards the x-axis. For example, if we have a function f(x) and we multiply it by 2, the new function g(x) = 2f(x) will stretch the graph vertically by a factor of 2. If we multiply by 1/2, as in g(x) = (1/2)f(x), the graph will shrink vertically by half.

Horizontal stretches and shrinks are determined by constants multiplied inside the function. A constant between 0 and 1 results in a horizontal stretch, while a constant greater than 1 leads to a horizontal shrink. For instance, if we have g(x) = f(1/2x), this indicates a horizontal stretch because we effectively double the x-values to return to the original function. Conversely, if we have g(x) = f(2x), the graph will compress horizontally, bringing points closer to the y-axis.

To summarize, the behavior of the graph under stretch and shrink transformations is dictated by the placement and value of the constant. Understanding these transformations allows for better manipulation and prediction of function graphs, enhancing overall comprehension of function behavior.

In exploring the function \( f(x) = c \cdot x^2 \), we can analyze how different constants \( c \) affect the graph of the parabola. When \( c = 2 \), the function becomes \( f(x) = 2 \cdot x^2 \). To understand the graph, we can evaluate specific x-values. For \( x = 0 \), we find \( f(0) = 2 \cdot 0^2 = 0 \), giving us the point (0, 0). For \( x = -1 \), we calculate \( f(-1) = 2 \cdot (-1)^2 = 2 \cdot 1 = 2 \), resulting in the point (-1, 2). Similarly, for \( x = 1 \), \( f(1) = 2 \cdot 1^2 = 2 \), yielding the point (1, 2). Thus, the graph of \( f(x) = 2 \cdot x^2 \) appears narrower than the standard parabola \( f(x) = x^2 \), indicating a horizontal shrink, which occurs when the constant \( c \) is greater than 1.

Next, we consider the case where \( c = \frac{1}{2} \), transforming the function to \( f(x) = \frac{1}{2} \cdot x^2 \). Again, we evaluate specific x-values. For \( x = 0 \), \( f(0) = \frac{1}{2} \cdot 0^2 = 0 \), maintaining the point (0, 0). For \( x = 2 \), we find \( f(2) = \frac{1}{2} \cdot 2^2 = \frac{1}{2} \cdot 4 = 2 \), leading to the point (2, 2). For \( x = -2 \), \( f(-2) = \frac{1}{2} \cdot (-2)^2 = \frac{1}{2} \cdot 4 = 2 \), resulting in the point (-2, 2). The graph of \( f(x) = \frac{1}{2} \cdot x^2 \) appears wider than the standard parabola, indicating a horizontal stretch, which occurs when the constant \( c \) is between 0 and 1.

It is important to note that the visual effects of these transformations can sometimes be misleading. A horizontal shrink can resemble a vertical stretch, while a horizontal stretch can appear similar to a vertical compression. This relationship highlights the symmetry inherent in parabolic graphs and emphasizes the importance of understanding how constants affect the shape and orientation of the graph.

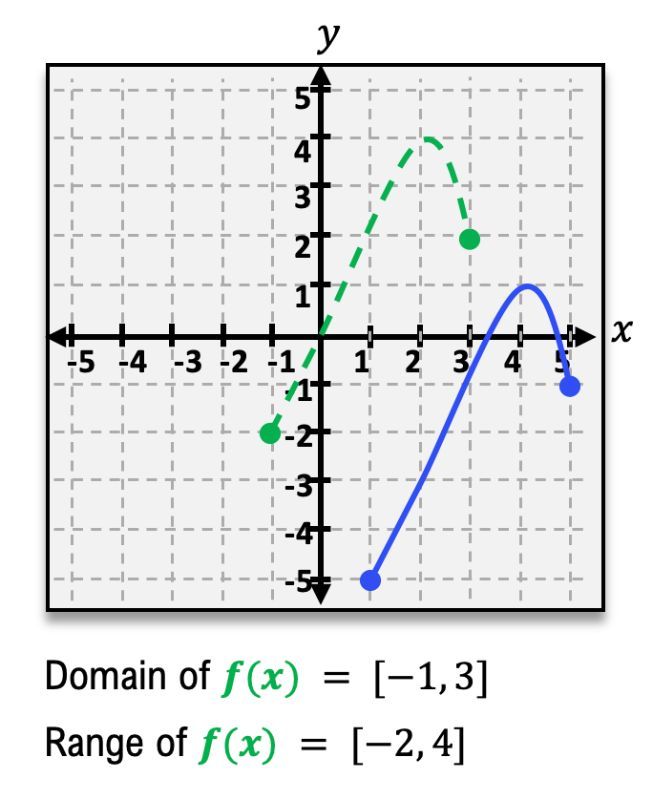

Transformations of functions, such as reflections, shifts, and stretches or shrinks, can significantly alter the domain and range of a function. Understanding how to determine these changes is crucial for analyzing transformed functions effectively.

To find the domain and range of a transformed function, one can visualize the new graph after the transformation. For instance, consider a function f(x). If we compress the graph down to the x-axis, we can identify the domain by observing the horizontal extent of the graph. Similarly, compressing the graph down to the y-axis allows us to determine the range. For example, if the original function has a domain from -3 to 3 and a range from -3 to 3, a transformation that shifts the graph may result in a new domain from -2 to 4 and a range from -1 to 5, demonstrating that transformations can indeed change both the domain and range.

Let’s explore a specific example with the function f(x) = x². The graph of this function is a parabola centered at the origin. When we consider the transformed function g(x) = (x - 3)² + 2, we can identify the transformation as a shift. This transformation can be expressed in the form f(x - h) + k, where h = 3 and k = 2. The positive value of h indicates a shift to the right, while the positive k indicates a shift upward. Thus, the vertex of the parabola moves from (0, 0) to (3, 2).

In terms of domain, the parabola still extends infinitely in both directions, so the domain of g(x) remains all real numbers, expressed as (−∞, ∞). However, the range changes due to the upward shift; originally, the range of f(x) was from 0 to ∞, but for g(x), the range is now from 2 to ∞, written as [2, ∞). This illustrates that while the domain may remain unchanged, the range can be affected by vertical shifts.

In summary, transformations can modify the domain and range of functions, and understanding how to analyze these changes is essential for working with transformed graphs. By visualizing the transformations and applying the appropriate shifts, one can effectively determine the new domain and range of a function.
